High frequency PCB designs often pass simulation with flying colors—yet fail in production for reasons that are entirely predictable and entirely avoidable. The root cause is rarely a novel engineering challenge. It is almost always a mismatch between what the design assumes and what the production process can reliably deliver.

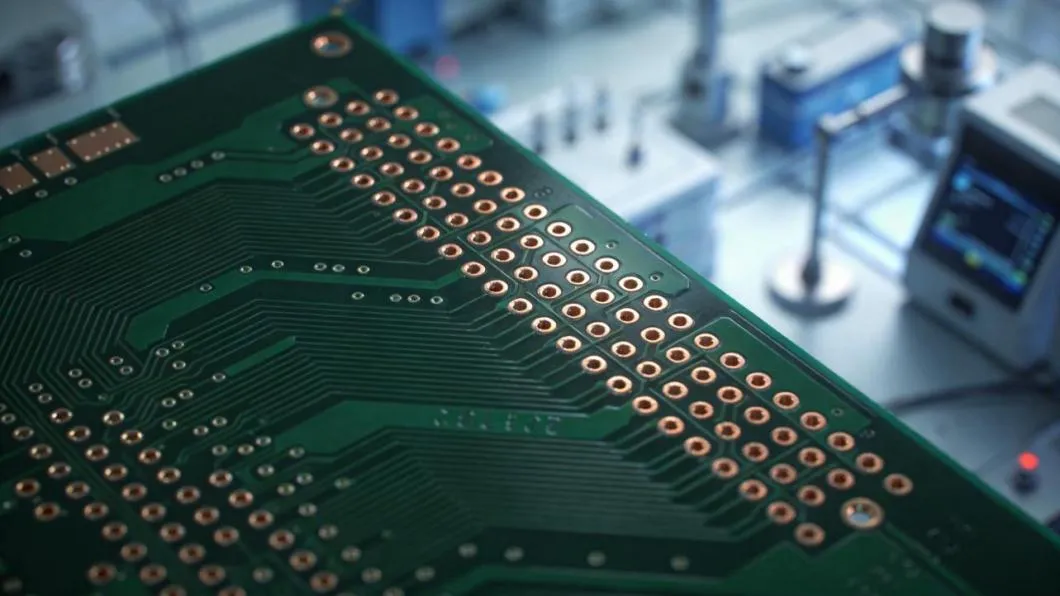

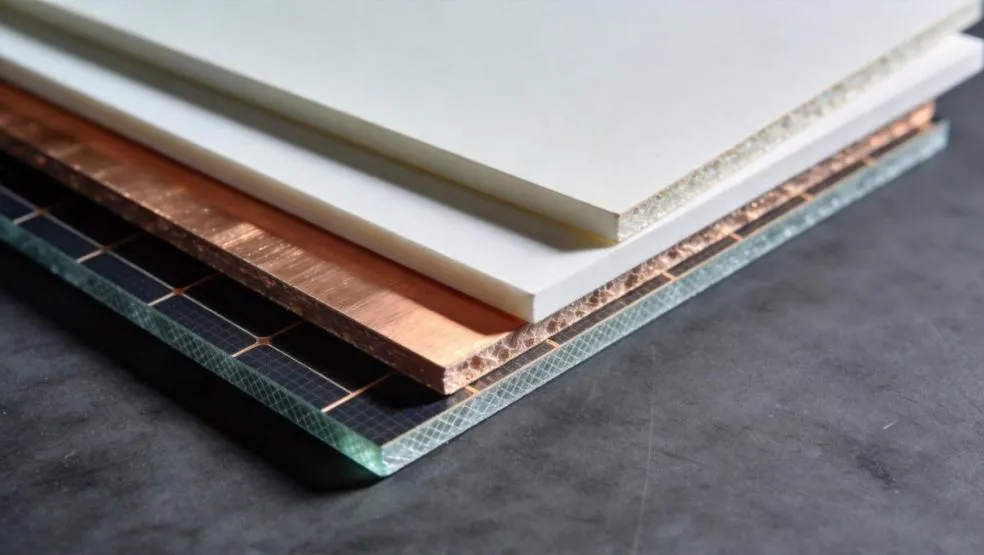

At WYD, our engineering team works to ensure that a design which works perfectly in software also translates into a board that can be manufactured at consistent quality across production batches. High frequency PCBs—using materials like Rogers, Isola, Taconic, or Arlon—demand tighter process control than standard FR-4 boards, making this gap even more critical.
The missing link is design-for-manufacturability (DFM) engineering—a collaborative process that catches misalignments before they become costly re-spins. When we receive your Gerber files, our engineering team does not simply confirm that the files are readable. We review them against WYD's documented process capabilities—the actual performance we have refined over thousands of high frequency orders. We identify areas where the design may push against manufacturing limits, and we work with you to find solutions before production begins.
This means fewer surprises, faster qualification, and a predictable path from prototype to volume production.
1. Data Integrity: Making Sure the Files Are Complete
Our engineering team performs a file completeness check within six hours of receiving your Gerber data. Any missing layer, undefined drill tool, or missing mechanical outline is flagged back to you immediately—before the design enters the quotation pipeline. We do not wait for the order to be placed to tell you there is a problem.
2. Material Specification: Getting the Stack-up Right
We verify that every layer in your design can be traced to a specific material grade, copper weight, and thickness. For hybrid designs that combine high frequency layers with standard FR-4, we review the stack-up to ensure compatibility with our lamination processes and confirm feasibility before production begins.
3. Line Width, Spacing, and Annular Rings
We compare every critical dimension on your board against WYD's documented capability. Where your design pushes below standard thresholds, we flag the specific areas and confirm feasibility with you. We do not reject designs that are challenging—we collaborate on solutions.
4. Impedance Control: Closing the Loop Between Simulation and Reality
Our engineers verify every impedance-controlled design using time-domain reflectometry (TDR) on dedicated test coupons built into each production panel. Test reports are available on request. Where impedance calculations differ between your simulation and our measurement, we work through the discrepancy before volume production begins—so you are not surprised later.
5. Via, Drill, and Aspect Ratio
We review every via configuration in your design against WYD's capability for the selected material. For blind and buried vias, we confirm that the lamination sequence matches the via structure—a common source of prototype failure that is almost always detectable at the DFM stage.
6. Thermal and Mechanical Balance
We review copper balance on each layer to reduce warpage risk during lamination. Where unbalanced copper distribution is unavoidable, we recommend strategies—such as copper thieving in unused areas—to mitigate the risk. Our engineering team can review layer balance as part of the standard DFM process.
7. Surface Finish Selection
We confirm that your selected surface finish is compatible with your impedance target. Different finishes add different thicknesses of metal to the trace surface, which can shift impedance—especially on very fine line geometries. We flag this before production begins, so there are no surprises.
Our engineering team provides DFM feedback within six working hours of file receipt, with RFQ responses in under two hours. For European customers, the WYD Italy office offers direct technical coordination in your timezone. These response commitments are backed by over 20 years of manufacturing heritage and a team with deep industry experience.
The table below summarizes the areas our engineering team reviews on every high frequency order. Use it as a guide when preparing your design package.
Verification Area | What We Check |
Data Integrity | Gerber completeness, drill file, tool list, mechanical outline |
Material Specification | Material grade, copper weight, pre-preg/core thickness for each layer |
Line Width & Spacing | Compliance with WYD capability; flagging challenging geometries |
Impedance Control | Structure type, reference planes, test coupon, tolerance band |
Via & Drill | Aspect ratio, blind/buried via feasibility, back-drilling |
Thermal & Mechanical | Copper balance, warpage risk, thermal relief patterns |
Surface Finish | Compatibility with impedance target and assembly process |
Q : What file formats does WYD accept?
A: We accept Gerber RS-274-X as the standard format, with ODB++ also supported. Drill files should be in Excellon format with a separate tool list. Including a stack-up drawing with material grades and dielectric thicknesses significantly accelerates the review process.
Q : How long does the DFM review take?
A: Standard DFM review is completed within six working hours of file receipt. More complex designs—such as advanced multilayer hybrid constructions or tight-tolerance impedance specifications—are returned with a specific review timeline within the same working day.
Q : Does WYD review designs before I place an order?
A: Yes. Our engineering team provides DFM feedback during the quotation phase, not after the order is placed. You receive manufacturability comments—including recommendations for cost reduction or yield improvement—before making a purchasing decision.
Q : Which surface finishes are available for high frequency boards?
A: We offer HASL lead-free, ENIG, ENEPIG, OSP, immersion tin, immersion silver, and gold finger. Our engineering team can recommend a finish based on your design specification and application environment.
WYD (WeiYuanDa Industrial Co., Limited) produces high frequency, HDI, multilayer, aluminium, and heavy copper PCBs from its Dongguan production site. With 24/7 engineering support, a 2-hour quotation response, and a 6-hour Gerber review commitment, the WYD team handles approximately 4,000 part numbers per month and serves customers in more than 50 countries.
European customers benefit from local technical support through the WYD Italy office in Formigine (Modena).
To discuss your high frequency PCB project, contact the WYD engineering team directly through the WYD Italy office or visit www.wyd-pcb.com.
